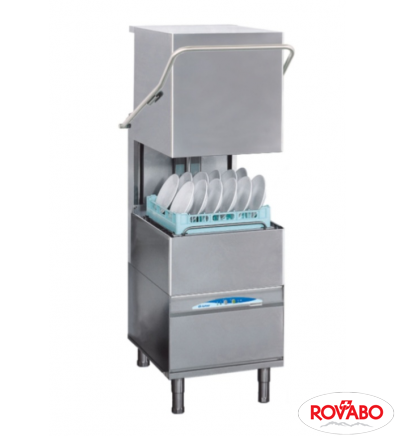

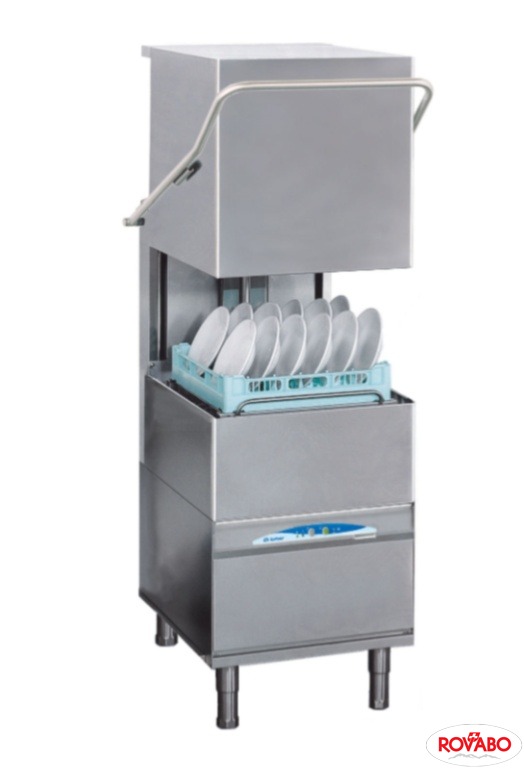

Pass through dishwasher, 500x500 mm baskets - №30 per hour, 39/ 5 lt

Pass through dishwasher, 500x500 mm baskets - №30 per hour, 39/ 5 lt

Model	DSP5
Power Type	Electrical
Power	5,15 kW
Temperature	50÷55°C
Capacity	39 / 5 l
Dimensions	600x755x1460 mm
Weight	111 kg
Water Inlet	3/4"G
Water Outlet	32 mm ÷ 1 1/4"G
Voltage	400 V/3/50 Hz
Producer	Lamber Srl

Capacity: boiler - 5 L, wash tank - 39 L. Boiler element - 4500W, wash tank element - 2400W. Washing pump - 650W. Cycle/ hour water consumption – 2.4/ 72 l. Water pressure - 2-4 bar, water hardness - 5-10°F. Wash cycle - 2 min. Washing capacity - 30 baskets/h. Basket size - 500x500 mm. Glass clearance - 415 mm. Stainless steel construction 18/10 AISI 304. Stainless steel wash and rinse arms. Rotating lower and upper washing; rotating lower and upper fixed rinsing. Rinsing water temperature - 80-90°C. Automatic tank loading. Door opening safety device. Top lifting handle. Extractible control panel. Incl. 1 basket for dishes, 1 general basket, 1 cutlery container.
