Refrigeration

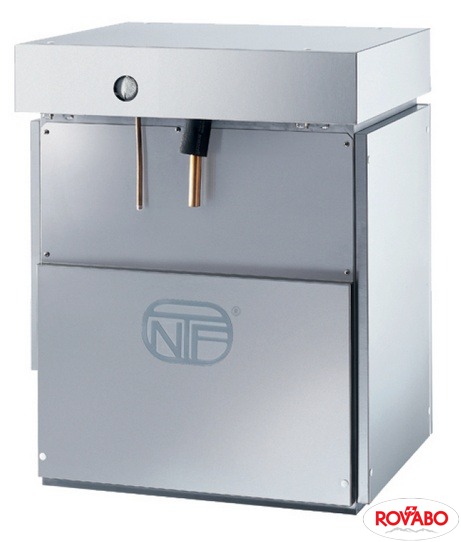

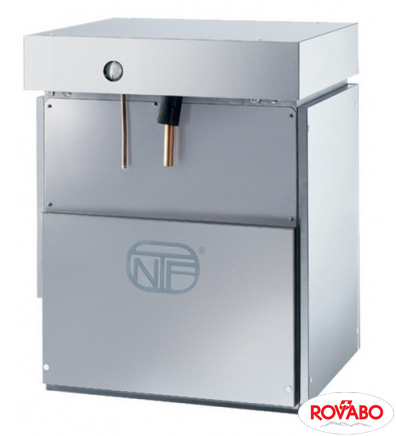

Ice maker, daily production 2300 kg
Model SPLIT4500
Power Type Neutral
Power 12 kW
Dimensions 736x832x1075 mm
Weight 300 kg
Water Inlet 123-120 mm - 3/4”
Water Outlet 78-65-24 mm
Voltage 400-415 V ~ 3N 50 Hz
Modular ice maker, AISI 304 stainless steel, scotch brite. Subcooled flakes (from -5°C to -10°C). Low consumption (1 liter water / 1 kg ice). Evaporator anticorodal alloy made, with rotating knife. Cleanable antiscale filter. Easy cleaning thanks to rounded surfaces. FDA approved. ABS plastic components. Conformity to RoHS directive. Automatic water charge. Standard and special voltages. Model in Tropical Class +43°C. 1 m3 = 430 kg of ice. Working conditions: indoor location, ambient temperature - +10 - +43°C, water temperature - +3 - +32°C, voltage - -10% - +10%, water inlet pressure - 1-6 bar. Electrical connection: 123-204 mm. Refrigerant feeding pipe. Outlet pipe of gaseous refrigerant. Production in 24h: 2300 kg. Refrigerant: R404A - R507 - R448A - R449A - R407F - R452A, capacity - 12 kW (evap. temp. -27°C).
