Ventilation

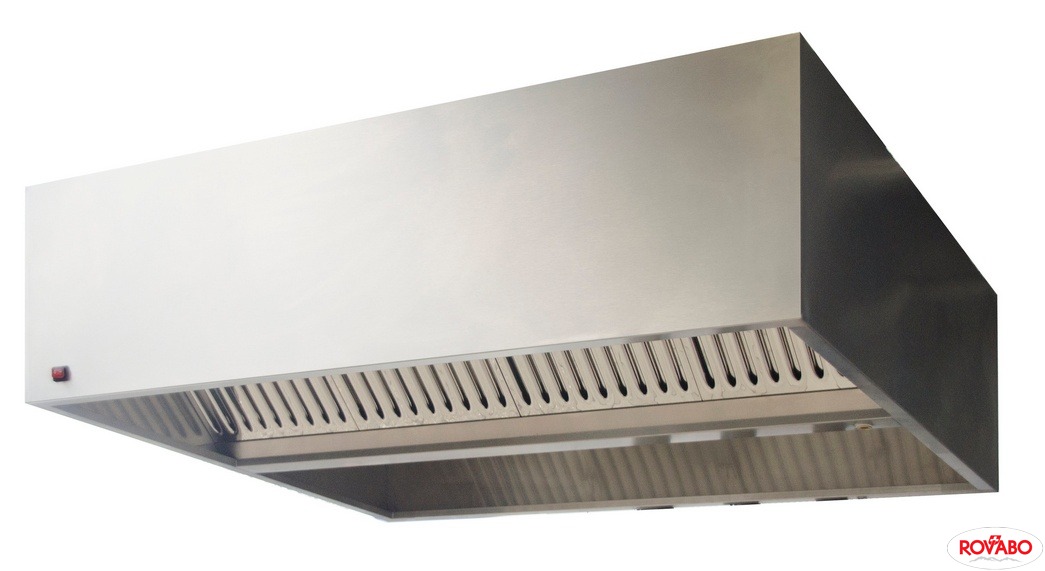

Material: stainless steel AISI430 body. Main features: stable construction with safely folded edges burrfree and with U-guide profile, set inclined for mounting aerosol separator. Seamlessly full-welded all round 50 mm aerosol collector with ½“ grease drain cock in the deep-drawn area. One-side positioned filter, air extraction in the middle. Fire-retardant filter type F2 (earlier B) (dishwasher safe) effectively separates fat fumes and it should not be applied over/ besides the thermal equipment with a high fire hazard. It is recommended to regularly clean the grease channels together with the grease filter. Filters No.: 14, dimensions: 40x50 mm. Prewired integrated energy efficient flush LED lighting (behind the plastic safety glass, incl. terminal box), 230V 50-60Hz rated voltage, IP65 with colour temperature of 4,000 Kelvin. Incl. aerosol separator (grease filter/ fire-retardant filter) 20 mm thick for vapours and aerosol trapping and separation. Factory-made cutout for connecting with the ventilating duct. Air flow rate: 3200 m3. Ideal for cooking, dispensing dishes or dishwashing area. Screw plugs, screws, chains etc. to be completed onsite. Incl. LED spot light emitter, fire-retardant filter type B and mounting kit. Centrifugal fans, speed regulators and other accessories are supplied upon request.
