Ventilation

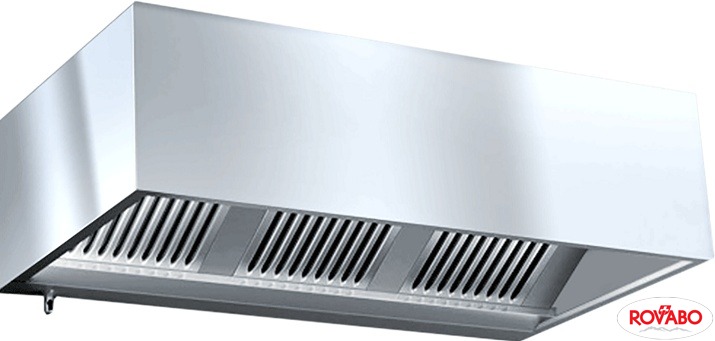

Material: stainless steel AISI430 body. Main features: stable construction with safely folded edges burrfree and with U-guide profile, set inclined for mounting aerosol separator with a grease drain cock in the deep-drawn area. One-side positioned filter, air vents in the middle. Fire-retardant fiter type F2 (earlier B) (dishwasher safe) effectively separates fat fumes and it should not be applied over the thermal equipment with a high fire hazard. It is recommended to regularly clean the grease channels together with the grease filter. Filters No.: 5, dimensions: 50x50x25 mm. Prewired integrated energy efficient LED spot lighting 5 W. Incl. aerosol separator (grease fiter/ fire-retardant fiter) 25 mm thick for vapours and aerosol trapping and separation. Factory-made cutout for connecting with the ventilating duct. Air flow rate: 2500 m3. Ideal for cooking, dispensing dishes or dishwashing area. Please control pressure loss across duct fitings and the fiter. Screw plugs, screws, chains etc. to be completed onsite. Incl. LED spot light emitter, fire-retardant fiter type B. Centrifugal fans, speed regulators and other accessories are supplied upon request.
